Overview:

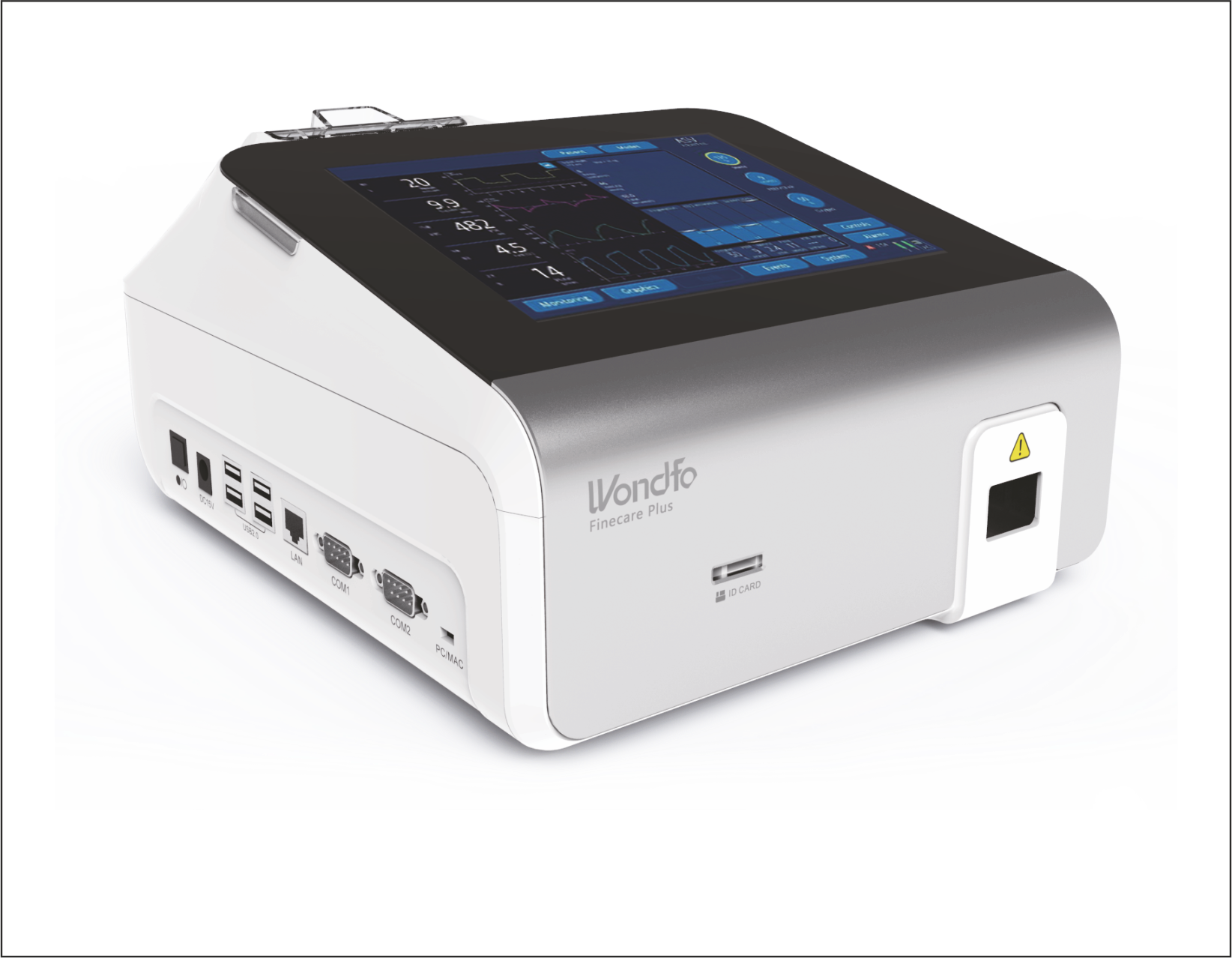

The WondfoFinecare II Plus SE (FS114) is a compact and advanced fluorescence immunoassay analyzer designed for rapid, reliable, and decentralized diagnostics. It empowers healthcare providers with accurate results at the point of care, supporting early detection and monitoring of critical diseases.
Description:
The FS114 is a semi-automated POCT analyzer utilizing fluorescence immunoassay technology to deliver high-sensitivity diagnostic results within minutes. It supports a broad test menu including cardiac markers, diabetes, thyroid function, inflammation, fertility, tumor markers, and infectious diseases.
Engineered for versatility, the system supports multiple sample types such as whole blood, serum, plasma, and urine, making it ideal for hospitals, clinics, and outreach healthcare settings. Results are available in as little as 3–15 minutes, enabling faster clinical decision-making.
With features like a touchscreen interface, built-in thermal printer, LIS/HIS connectivity, and a rechargeable battery, the FS114 ensures seamless operation even in resource-limited environments. Its portability and ease of use make it highly suitable for decentralized and rural healthcare delivery.
| Specification | Details |
|---|---|
| Methodology | Fluorescence Immunoassay |
| Calibration | In-built ID Chip Calibration |
| Excitation Light Source | LED |
| Excitation Spectrum Center Wavelength (λ₀) | 470 nm |
| Absorption Spectrum Center Wavelength (λ₁) | 525 nm |
| Specimen Type | Whole Blood, Serum, Plasma, or Urine |
| Operating System | Linux, English Input Method, Customized Intelligent Management Module |
| Detector | Photodiode |
| Storage Capacity | Up to 50,000 Test Results |
| Interface Port | RS-232 / USB / Ethernet Network |
| Miscellaneous | Thermal Printer, 8" LCD Touch Screen, English Language Interface Available |
| Battery | Rechargeable Lithium Battery |
| Dimensions (W × D × H) | 278 × 239 × 148 mm |
| Weight | About 3.3 kg |
| CLIA TEST MENU | ||
|---|---|---|
|
🦠 Infectious Disease
|
🧬 Thyroid Function
|
👶 Fertility
|
|
❤️ Cardiac Markers
|
🩸 Thrombus Markers
|
🔥 Inflammation
|
|
🎗 Tumor Markers
|
🤧 Allergy
|
🩸 Anemia Markers
|
