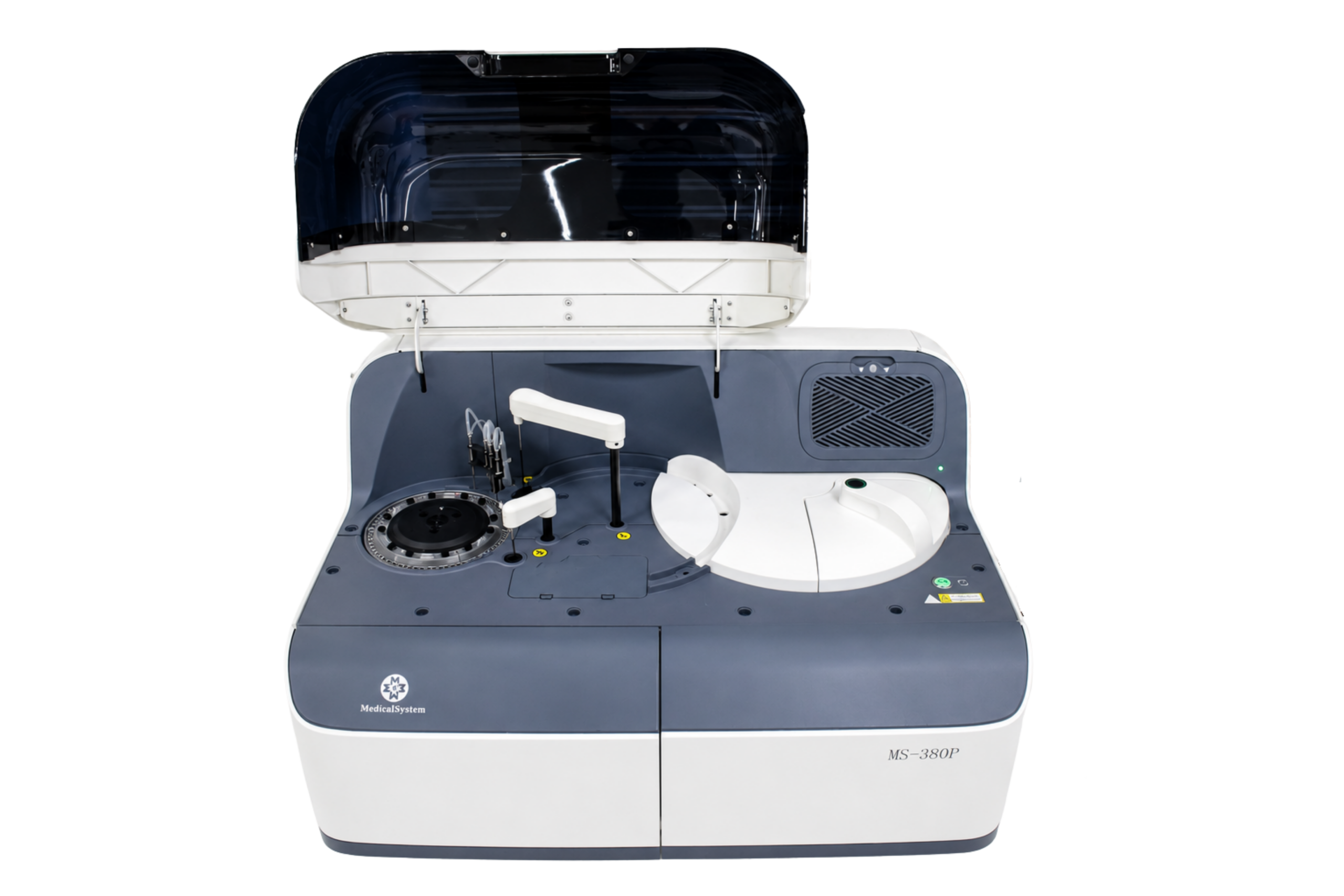

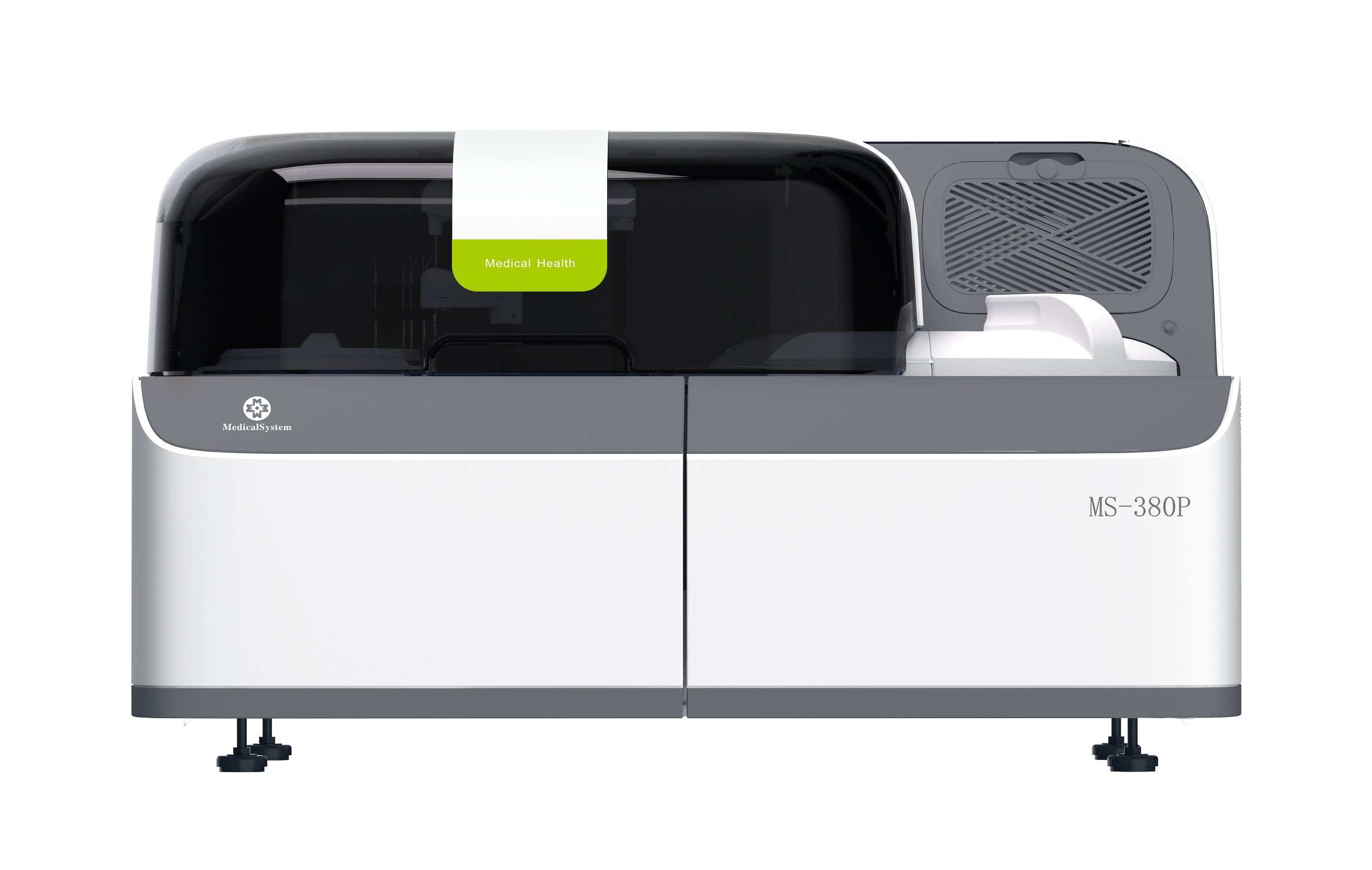

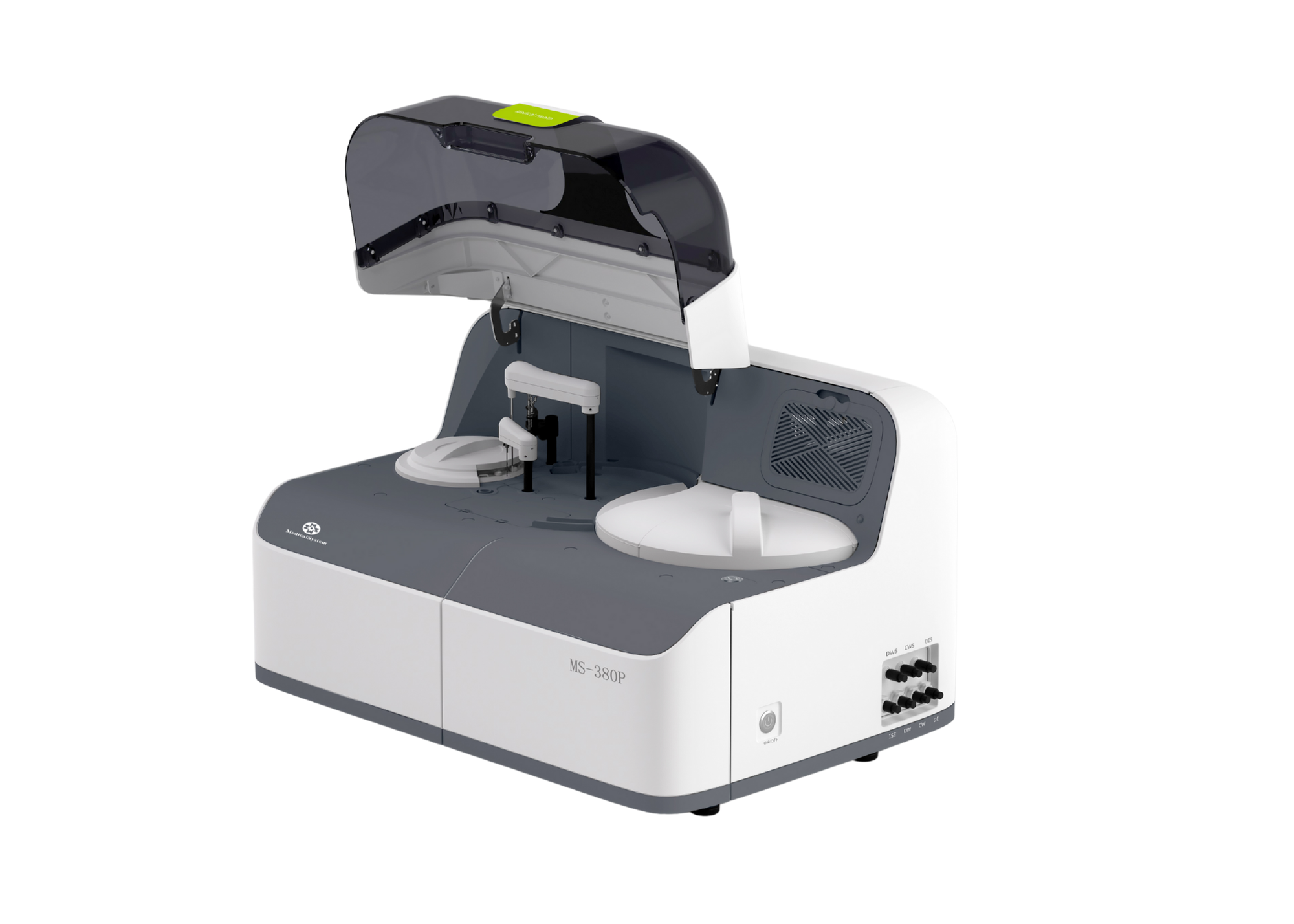

The MS-380P is an advanced fully automated clinical chemistry analyzer engineered to deliver exceptional stability, precision, and high-performance testing for modern diagnostic laboratories. With a constant throughput of 300 tests per hour, it is designed to meet the demanding workload of medium to high-volume laboratories while ensuring rapid turnaround time and consistently reliable results.



The analyzer is equipped with 40 reagent positions and 40 sample positions, providing the flexibility to perform a comprehensive range of routine and specialized assays. An integrated barcode scanner and bi-directional LIS/HIS connectivity enable seamless sample identification, automated data transfer, and efficient laboratory workflow, significantly reducing manual intervention and the possibility of transcription errors.
A distinctive feature of the MS-380P is its innovative co-axial reagent and sample tray design, which maintains optimal reagent temperature throughout the testing process while supporting true random-access operation. This intelligent design allows continuous loading of samples and reagents without interrupting ongoing analysis, enhancing laboratory productivity and operational efficiency.
To further improve turnaround time (TAT) and analytical performance, the MS-380P is equipped with 66 reusable reaction cuvettes and an advanced on-board automatic washing system. This combination effectively minimizes carryover, extends cuvette life, reduces operating costs, and ensures highly accurate and reproducible test results.
The analyzer supports a comprehensive test menu, including both clinical chemistry and immunoturbidimetric assays, making it an ideal solution for hospitals, diagnostic centers, and reference laboratories. Its advanced optical system, precision liquid handling, and intelligent software deliver dependable performance across a wide range of routine and specialized parameters.
To maximize instrument uptime and ensure uninterrupted laboratory operations, the MS-380P is integrated with Matrix’s proprietary proactive CRM platform. The system continuously monitors analyzer performance, enabling predictive maintenance and early fault detection. Supported by the dedicated MX Care service team, laboratories benefit from proactive technical support, faster service response, and minimal downtime, ensuring continuous, reliable performance
| Throughput | 300 Tests/Hour |
| Description | Fully automated random access clinical chemistry analyzer |
| Measuring Principle | End Point, Kinetic, Fixed Time and Immunoturbidimetry |
| Methodology | Absorbance Photometry and Turbidimetry |
| Light Source | Halogen Tungsten Lamp |
| Wavelength | 340–850 nm, 12 wavelengths |
| OD Linear Range | 0–3.5 ABS |
| Optical System | Post-filter Spectroscopy |
| Reagent Position | 40 positions with 24-hour refrigerated compartment |
| Sample Position | 40 positions |
| Reagent Volume | 20–200 µL, in 0.5 µL steps |
| Sample Volume | 2–50 µL, in 0.1 µL steps |
| Reagent/Sample Probe | Liquid level detection Vertical collision protection Inventory checking Clot detection with automatic washing |
| Probe Cleaning | Automatic washing for the interior and exterior |
| Automatic Sample Dilution | Pre-dilution and post-dilution |
| Mixing Unit | Independent mixing probe |
| Connectivity | Bidirectional LIS |
| Reaction Tray | 60 reusable cuvettes |
| Reaction Volume | 90–320 µL |
| Temperature Control | 37 ± 0.1°C |
| Cuvette Washing | 5-stage washing system |
| Operating System | Windows 10/11 |
| Interface | Ethernet |
| Power Supply | 200–240 V, 50/60 Hz |
| Operating Temperature | 15–32°C |
| Operating Humidity | 40%–85% RH |
| Water Consumption | <8 L/Hour |
| Dimensions (L × W × H) | 865 × 600 × 500 mm |
| Weight | 70 kg |
| BIOCHEMISTRY TEST MENU | ||
|---|---|---|
|
🩺
Extended Renal Profile
|
🌡️
Inflammatory Profile
|
🩸
Diabetic Profile
|
|
❤️
Cardiac Profile
|
🧬
Lipid Profile
|
🔬
Extended Lipid Profile
|
|
🧪
Pancreatic Profile
|
🦴
Arthritis Profile
|
🫀
Liver Function Profile
|
|
⚗️
Other Parameters
|
🧲
Iron Profile
|
💧
Renal Profile
|
