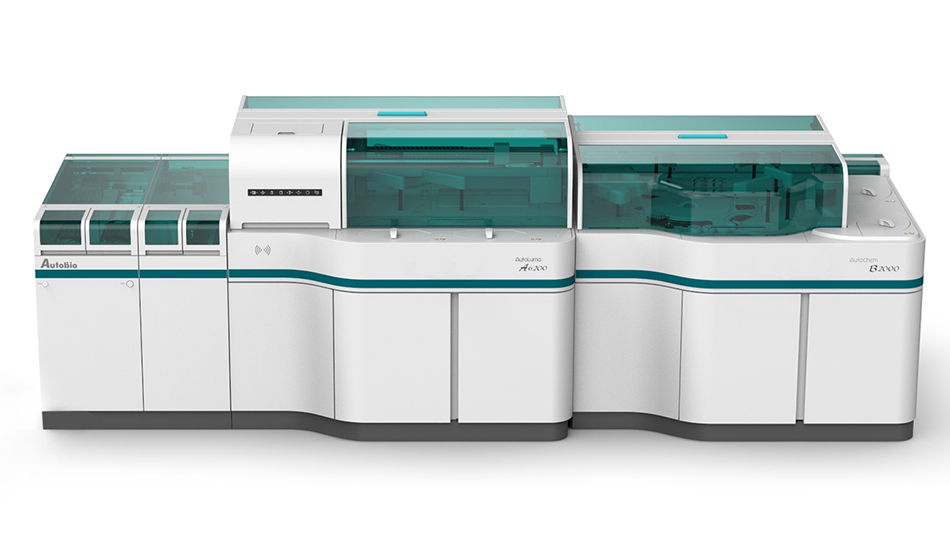

The Autolas Bi2600 is fully automated integrated solution that combines high-throughput clinical biochemistry and chemiluminescence immunoassay (CLIA) on a single intelligent automation platform. Designed for large-scale laboratories, it delivers faster turnaround time (TAT), optimized workflow, and exceptional operational efficiency while minimizing laboratory footprint.
Bi2600 can provide 2,000 tests/hour per module (expandable up to 9,600 tests/hour with four modules) with Immunoassay Module offering 600 tests/hour with simultaneous testing of biochemistry and immunoassay. This is ideal for high volume hospital laboratories and stand alone laboratories. Its independent three rack transport system provides faster turnaround time. It also has dedicated STAT position for priority sample processing with optimized workflow management. Bi2600 is designed to improve laboratory efficiency while supporting quality assurance with low carryover (<0.1ppm), precise low volume sample aspiration, dual regent carousel, intelligent liquid level and clot detection feature, barcode based system for reagent and sample identification.
| Methodology | Glow Chemiluminescence immunoassay (gCLIA), photometry for chemistry. |
| Throughput: | 600 Tests / Hour for CLIA and 2000 Test /Hour for Chemistry |
| RV Loading Capacity: | 3600 Max, continues loading capacity for CLIA, hard glass cuvette for Chemistry |
| Sample Probe | Teflon coated probes |
| Sample Capacity: | 150 Sample Position at a time and continuous loading with independent STAT loading position |
| Sample Track | Emergency sample Track, Routine Sample Rack and Sample Return Track |
| Sample Pipette Volume: | 8 – 150 µL ( for CLIA) and 1.5. – 35 µL ( for Chemistry with 0.1 µL step up) |
| Sample Dilution Factor: | upto2601 fold for CLIA |
| Sample probe Detection Features | Anti-collision detection Liquid Level detection Air Aspiration detection Probe blockage detection |
| Sample Probe wash | Vacuum-based Surrounding Wash Technology |
| Reagent Volume | 15- 350 µL , 0.5 µL step up. |
| Substrate Capacity | 2 sets of substrates available on-board by automatic switching for CLIA |
| Carry over | ≤ 1.0 ppm |
| Incubation Position | 340 reaction vessels capacity in 37’C + 0.3℃ incubation for CLIA. |
| Reaction Position | 408 reaction position |
| Reaction Volume | 80-302 µL for chemistry assay |
| Mixing | Non-Contact Vibrator mixing for CLIA, 2 independent mixer for chemistry. |
| On-board Reagent Capacity: | 50 Reagent Positions in 2 Reagent Disks for CLIA and individual 90 position for R1 and R2. |
| On-board Reagent Storage: | 2–8 °C, 24 Hrs. |
| Reagent Scanning: | Radio-frequency identification (RF-ID) |
| Wash Buffer | Auto-dilution of wash buffer |
| Retest | On-board Retest available |
| Clinical Chemistry | Albumin Kit | Alkaline Phosphatase (ALP) Kit | Amylase Kit |
|---|---|---|---|
| Bilirubin Direct Kit | Bilirubin Total Kit | Calcium Kit | |
| Creatinine Kit | Gamma GT Kit | Glucose Kit | |
| GOT (AST) Kit | GPT (ALT) Kit | HDL Cholesterol Kit | |
| LDH Kit | LDL Cholesterol Kit | Phosphorus Kit | |
| Total Cholesterol Kit | Total Protein Kit | Triglycerides Kit | |
| Urea Kit | Uric Acid Kit | Ammonia | |
| Bicarbonate | Iron | Magnesium | |
| Creatine Kinase (CK-NAC) | Lactate | Cholinesterase | |
| TIBC | |||
| Immunochemistry | Rheumatoid Factor (RF) | Cholinesterase | Cystatin C |
| Microalbumin | Lipoprotein (a) | Ferritin | |
| Transferrin | Apolipoprotein A1 | Apolipoprotein B | |
| Complement C3 | Complement C4 | ASO (Anti-Streptolysin O) | |
| Rheumatoid Factor (RF) with CRP |
| CLIA TEST MENU | ||
|---|---|---|
|
🧬 Thyroid
|
🦠 Infectious Disease
|
🦠 COVID-19
|
|
👶 Fertility
|
🎗 Tumor Marker
|
🦴 Bone Metabolic
|
|
❤️ Cardiac
|
🩸 Diabetes
|
🩺 Hypertension
|
|
🧪 Liver Fiborsis
|
🧬 Anemia
|
🦠 TORCH
|
|
📈 Growth Hormone
|
🫁 Tuberculosis
|
🫀 Hepatitis B
|
|
🌿 Allergy
|
🩸 Coagulation
|
🦟 Tropical Diseases
|
|
🌡️ Inflammation
|
🛡️ Anti-Nuclear Antibody:
|
🦴 Rheumatoid Arthritis
|
|
💊 ANCA Associated Vasculitis (AAV)
|
🫀 Primary Biliary Cholangitis (PBC)
|
💉 Type 1 Diabetes Mellitus(T1DM)
|
|
🩸 Antiphospholipid Stndrome (APS)
|
||
