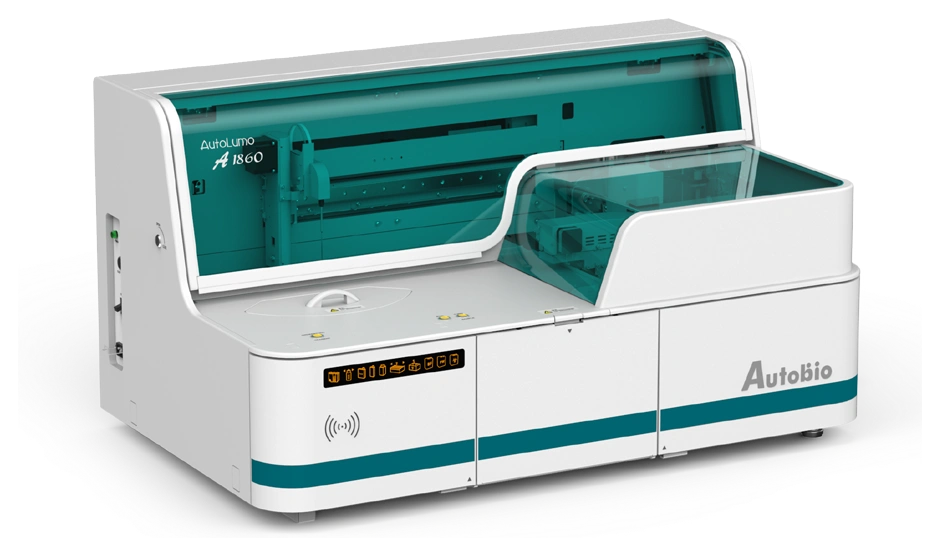

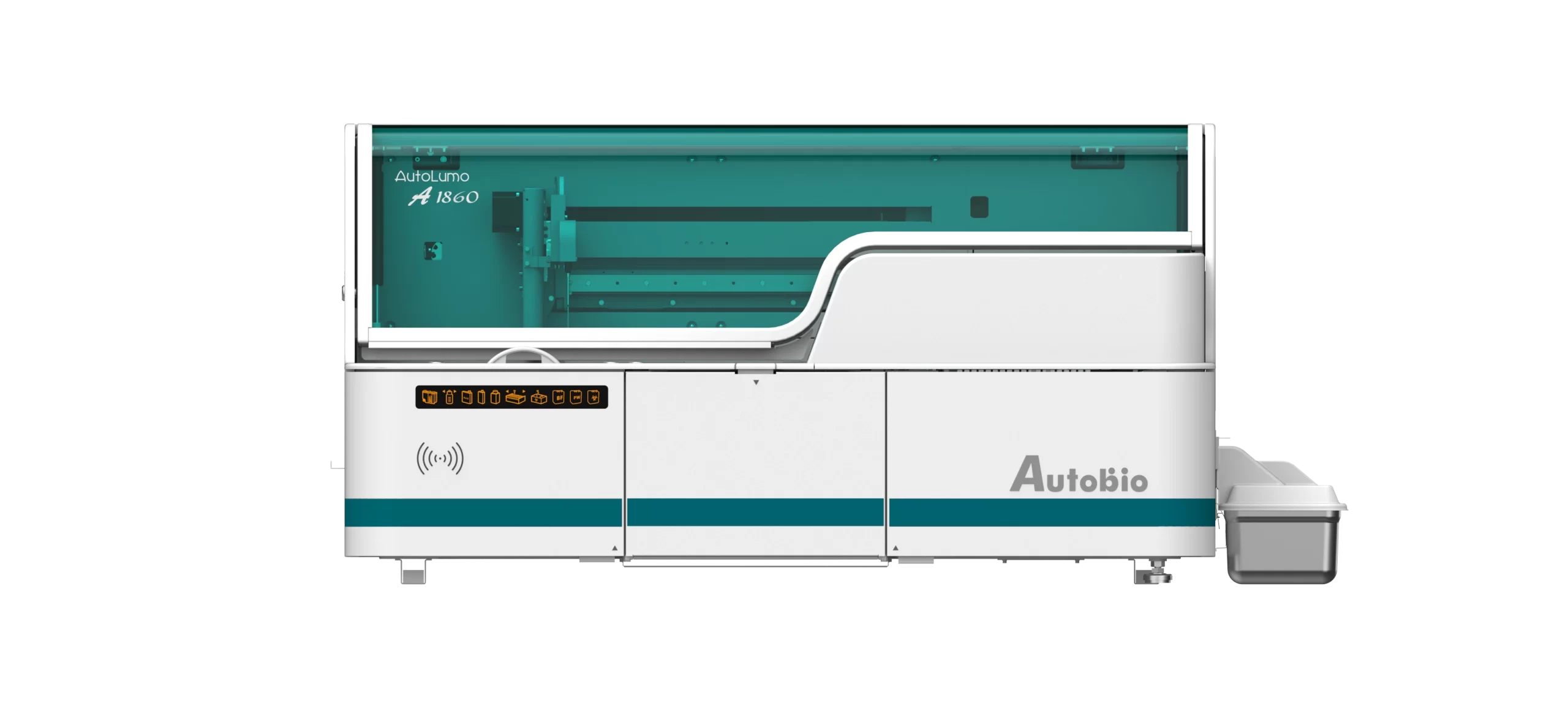

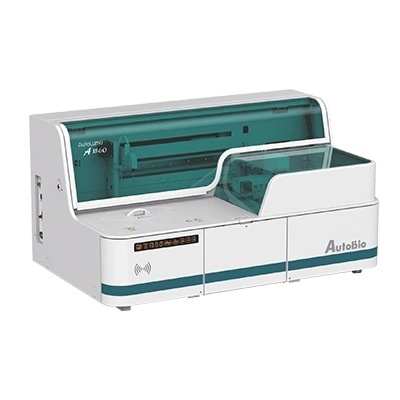

The AutoLumo A1860 is a next-generation, fully automated Chemiluminescence Immunoassay (CLIA) analyzer designed to deliver high-efficiency, precise, and reliable diagnostic testing for small to medium-sized laboratories.
Built with a compact structure and innovative design, the A1860 combines advanced chemiluminescent detection with intelligent automation, enabling laboratories to streamline workflows while maintaining superior analytical performance.
Its ability to perform both one-step and two-step assays allows flexibility across a wide range of clinical applications including hormones, infectious diseases, tumor markers, cardiac markers and pre-natal screening.
| Methodology | Glow Chemiluminescence immunoassay (gCLIA) |
| Throughput: | 180 Tests / Hour |
| RV Loading Capacity: | 80 x 2 Cassettes (160 pcs) |
| Sample Probe | Teflon coated probes |
| Sample Capacity: | 60 samples including 1 STAT Channel |
| Sample Pipette Volume: | 8 – 150 µL |
| Sample Dilution Factor: | Upto2601 fold |
| Sample Probe Detection Features |
Anti-collision detection Liquid Level detection Air Aspiration detection Probe blockage detection |
| Sample Probe Wash | Vacuum-based Surrounding Wash Technology |
| Substrate Capacity | 2 sets of substrates available on-board by automatic switching |
| Carry Over | ≤ 1.0 ppm |
| Incubation Position | 103 reaction vessels capacity in 37°C ± 0.3℃ |
| Mixing | Eccentric Non-Contact Vortex mixing |
| On-board Reagent Capacity: | 25 positions, continuous reagent loading. |
| On-board Reagent Storage: | 2–8 °C, 24 Hrs. independent cooling in sleep mode |
| Reagent Scanning: | Radio-frequency identification (RF-ID) |
| Size (W*D*H) | 1200 x 736 x 635 mm |
| Weight | 183 kg |
| CLIA TEST MENU | ||
|---|---|---|
|
🧬 Thyroid
|
🦠 Infectious Disease
|
🦠 COVID-19
|
|
👶 Fertility
|
🎗 Tumor Marker
|
🦴 Bone Metabolic
|
|
❤️ Cardiac
|
🩸 Diabetes
|
🩺 Hypertension
|
|
🧪 Liver Fiborsis
|
🧬 Anemia
|
🦠 TORCH
|
|
📈 Growth Hormone
|
🫁 Tuberculosis
|
🫀 Hepatitis B
|
|
🌿 Allergy
|
🩸 Coagulation
|
🦟 Tropical Diseases
|
|
🌡️ Inflammation
|
🛡️ Autoimmune
|
🦴 Rheumatoid Arthritis
|
|
💊 ANCA Associated Vasculitis (AAV)
|
🫀 Primary Biliary Cholangitis (PBC)
|
💉 Type 1 Diabetes Mellitus(T1DM)
|
|
🩸 Antiphospholipid Stndrome (APS)
|
||
